Frame and Structural Repair
Straight is not a look. It's a number, compared against the dimensions the manufacturer published for your exact vehicle, and recorded before and after the work.
Almost every car on the road is a unibody. There's no separate ladder frame underneath. The body panels, rails, pillars and floor are the structure, and they work together the way a bridge does.
Which means a hit to the front bumper can move a point behind the front door. And a quarter panel that looks perfect can be sitting on a rail that's a few millimeters out. You will not see it. You may feel it later as a pull, uneven tire wear, a door that needs a shove, or a car that tracks slightly sideways down I-25.
How the measurement actually works
The vehicle gets anchored to a bench so it can't move while we work. Then control points on the underbody and upper body get measured electronically and compared, point by point, to the manufacturer's published dimensions for that vehicle.
The output is a report showing length, width and height deviation at each point. That report is the target for the repair and the proof afterward. We measure before we pull, during the pull, and again when we think we're done, because a structure under load moves back when you release it and the last measurement is the only one that counts.
Comparing the left side of a car to the right side tells you the two sides match. It does not tell you either one is correct. Cars are not perfectly symmetrical from the factory, and a hit that moved both sides will read as fine. Only comparison to published factory data catches that.
Not everything gets straightened
This is the part that surprises people. Modern structures use boron steel and ultra high strength steel in the places that matter most: pillars, roof rails, door beams, some sections of rocker and rail. Those alloys get their strength from how they were heat treated at the mill.
Heat them again with a torch and you destroy that treatment permanently. Pull them past a certain point and they crack instead of stretching. So manufacturers publish rules, and the rules frequently say: do not straighten this, do not heat this, replace it at this seam using this joining method.
We follow the rule. A shop that pulls a boron pillar back into shape because it saves two days has produced a car that looks correct and is not.
| Situation | What the procedure usually calls for |
|---|---|
| Mild steel rail, moderate deformation | Measured pull back to specification, then re measure and verify |
| Boron or UHSS component, any deformation | Replace. No heat, no straightening, sectioned only where the manufacturer allows it |
| Kinked structural member | Replace. A kink is a permanent change in the metal, not a bend |
| Aluminum structure | Replace in most cases, with rivet and adhesive joining, in a separate work area to avoid cross contamination with steel |
| Full frame truck, twisted rail | Measured correction where the manufacturer permits it, replacement where it does not |
Joining it back together

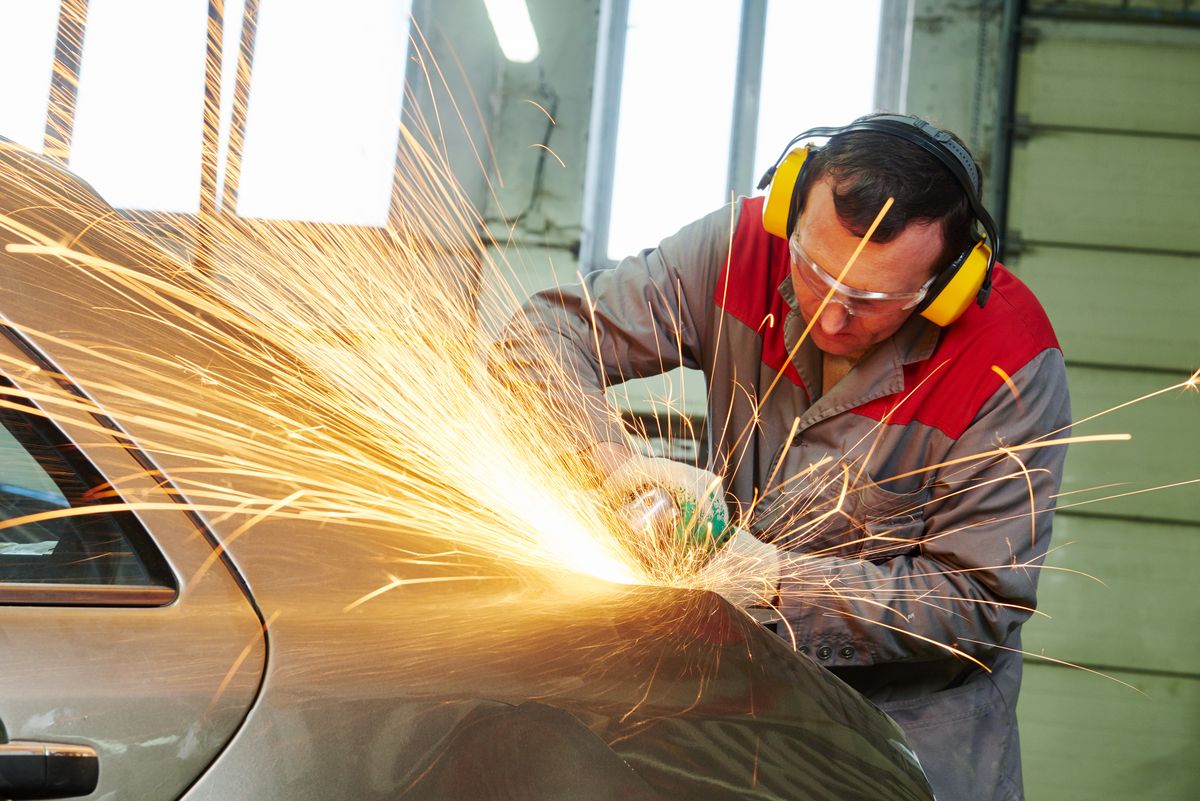

Where a section gets replaced, the seam location is specified, not chosen. So is the joining method: squeeze type resistance spot welds, MIG plug welds, MIG brazing, structural adhesive, rivets, or a combination. Weld settings get proven on a destructive test coupon in the same material and thickness before anyone touches the car.
Then the corrosion protection has to go back. Every time we cut, weld or grind, we remove the factory coating in that area. Cavity wax, seam sealer and weld through primer get reapplied at the seams we opened. Skip it and the repair looks perfect for two Colorado winters, then starts bubbling along the seam where the mag chloride found it.
Signs a structural repair was done badly
Uneven panel gaps that were fine before the accident. A door that catches. Tire wear on one edge. A steering wheel that isn't centered on a straight road. Water in the trunk or footwell. Wind noise that wasn't there before. Paint bubbling along a seam a year or two later.
If you're seeing any of that after a repair somewhere else, bring it in. We'll measure it and show you the report either way.
The bottom line
A structural repair either matches the factory dimensions or it doesn't, and there is a document that says which. Ask for it. Any shop doing this work properly can hand you the before and after measurement report without hesitating.
Upper and lower control points, measured against published factory dimensions.
Frame and Structural Repair questions
Straight answers
Is frame damage always a total loss?
No. That idea comes from body on frame vehicles and older repair methods. Plenty of structural damage is repairable to factory specification.
Whether it gets repaired is an economic decision your insurer makes by comparing repair cost against the vehicle's value, not a statement about whether the repair is possible.
Can you tell if my car had frame damage before I bought it?
Often, yes. Measurement will show whether the structure currently sits inside factory tolerance, and a physical inspection shows evidence of previous repair: replaced sections, non factory welds, missing corrosion protection, overspray in odd places.
It will not tell you what a previous owner disclosed.
What is sectioning?
Replacing part of a structural component instead of the whole thing, by cutting at a location the manufacturer approves and joining the new piece with a specified method.
Manufacturers publish where sectioning is allowed and where it is not. Cutting somewhere convenient instead of somewhere approved is one of the most common serious mistakes in this trade.
Do you need to remove the paint to repair the structure?
In the repair area, yes. Welding and adhesive bonding both need clean, bare, properly prepared metal. That is also why restoring corrosion protection afterward matters so much.
